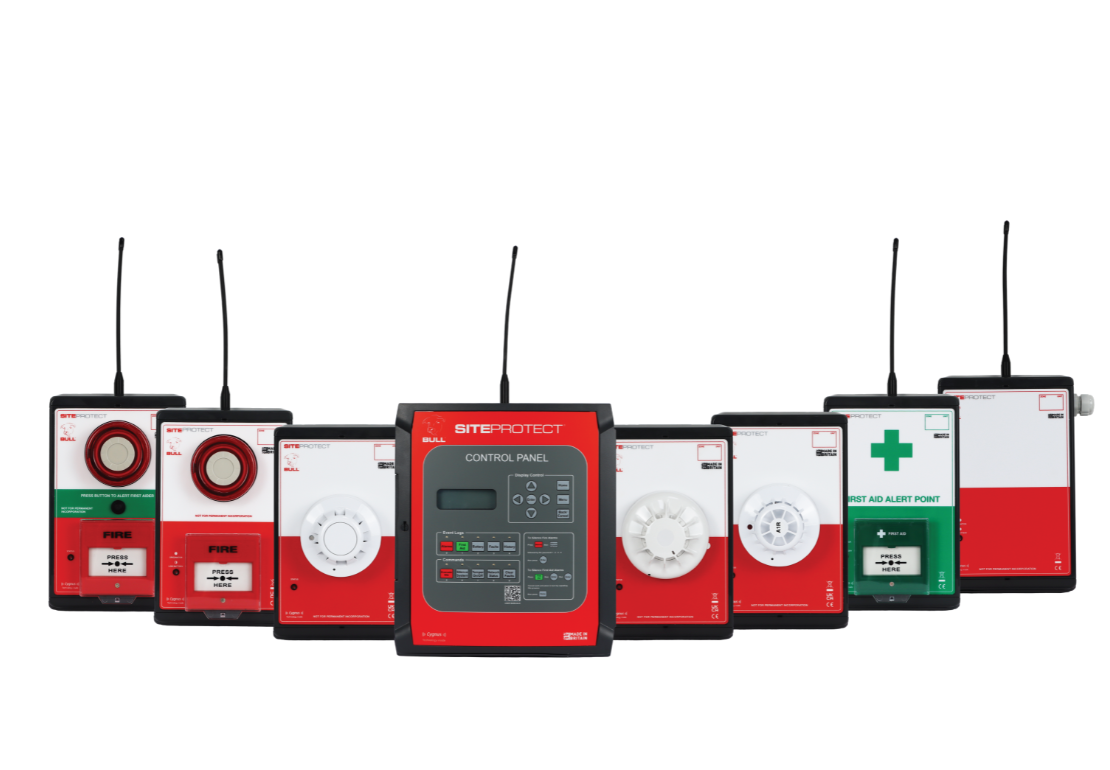

SITEPROTECT Wireless Alarm System

The SITEPROTECT Wireless Alarm System, manufactured by Bull Products, sets the benchmark in innovation in wireless emergency fire, first aid and intruder alarms for construction sites. Designed for performance and reliability and utilising patented Cygnus technology to power the devices, SITEPROTECT is the most adaptable temporary mesh fire alarm system for use in the construction industry.

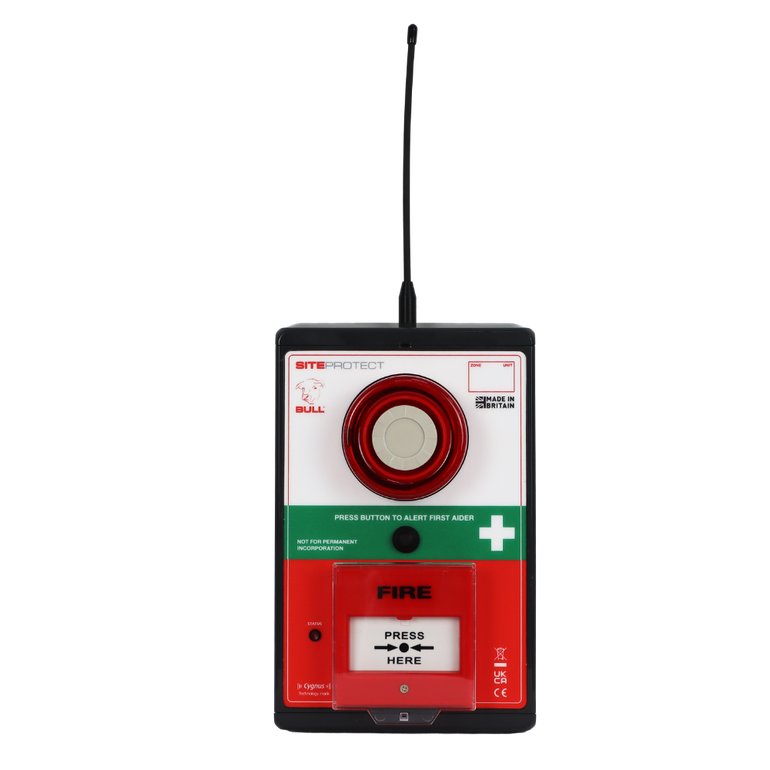

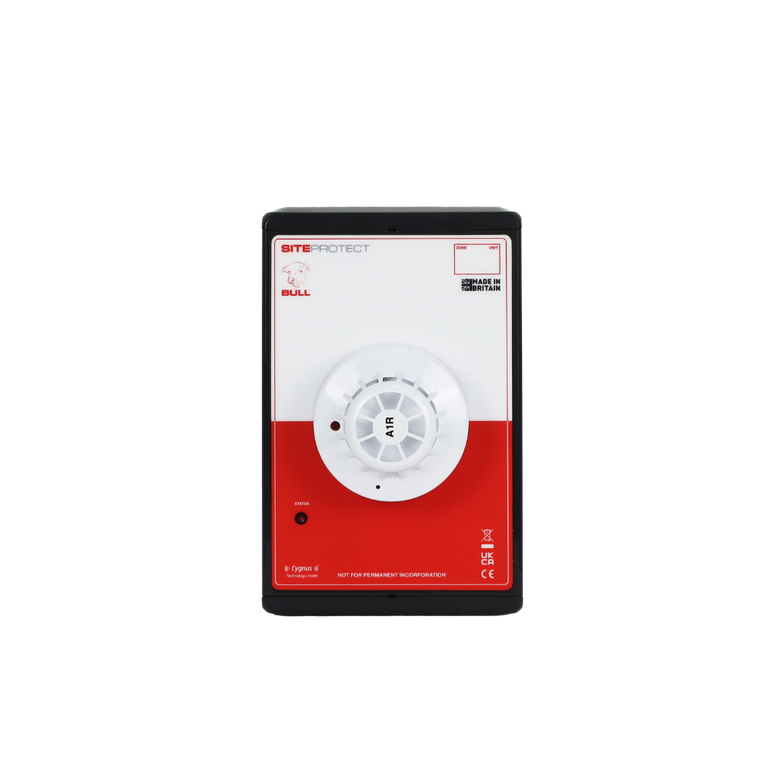

SITEPROTECT can link up to 480 individual devices in 15 different zones, including fire alarm call points, first aid alert points, smoke detectors, heat detectors, combined fire call point/first aid alert alarm and interface units.

CYG1

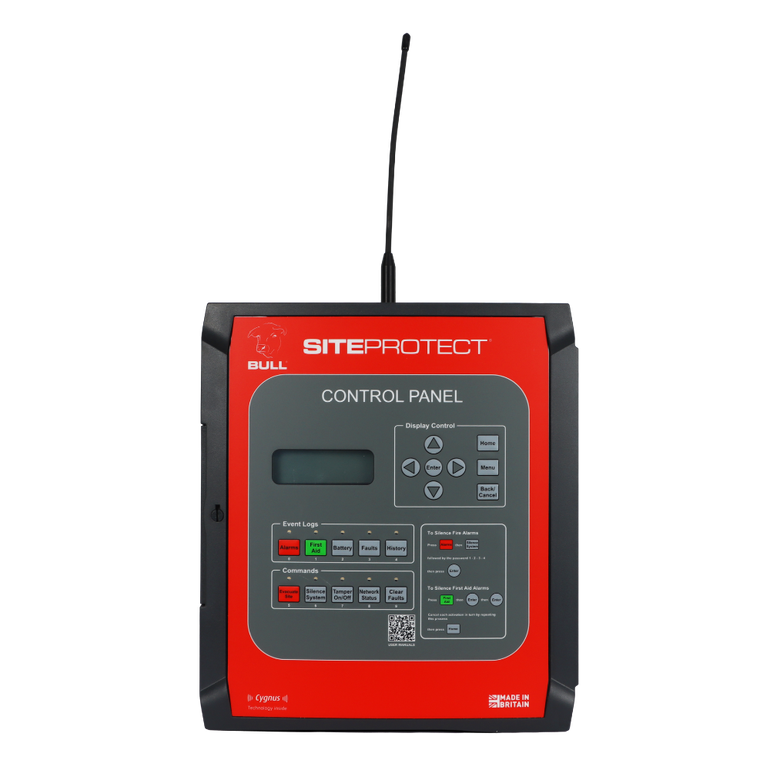

SITEPROTECT Control Panel (480 addresses)


The control panel is an optional element of any SITEPROTECT system, used to capture data from up to 480 devices situated around a site. The control panel is mains powered but has its own internal rechargeable battery power source, which fully charged, will last four weeks. The panel also includes an evacuate site function and is also used to switch intruder sensors on or off.

CYG2/85DB

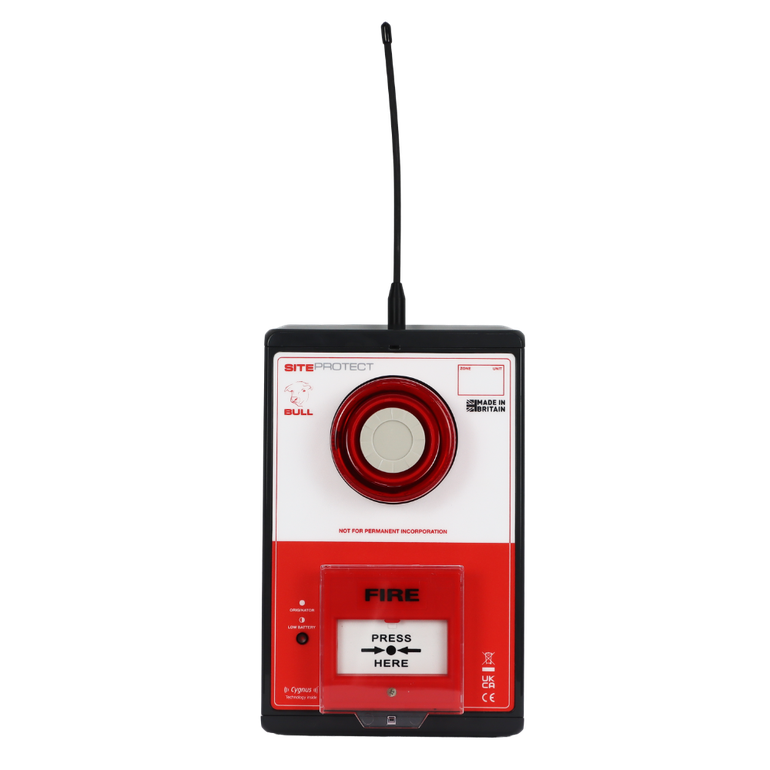

SITEPROTECT Fire Call Point Alarm 85 Decibel

The SITEPROTECT 85 decibel call point alarm is IP65 rated, so suitable for external use.  These devices are built with a quieter sounder for areas where a 110 decibel level is inappropriate. This device does not include a flashing beacon.
The CYG2/85DBPIR SITEPROTECT Fire Call Point Alarm 85dB (no beacon) c/w PIR intruder sensor

CYG5

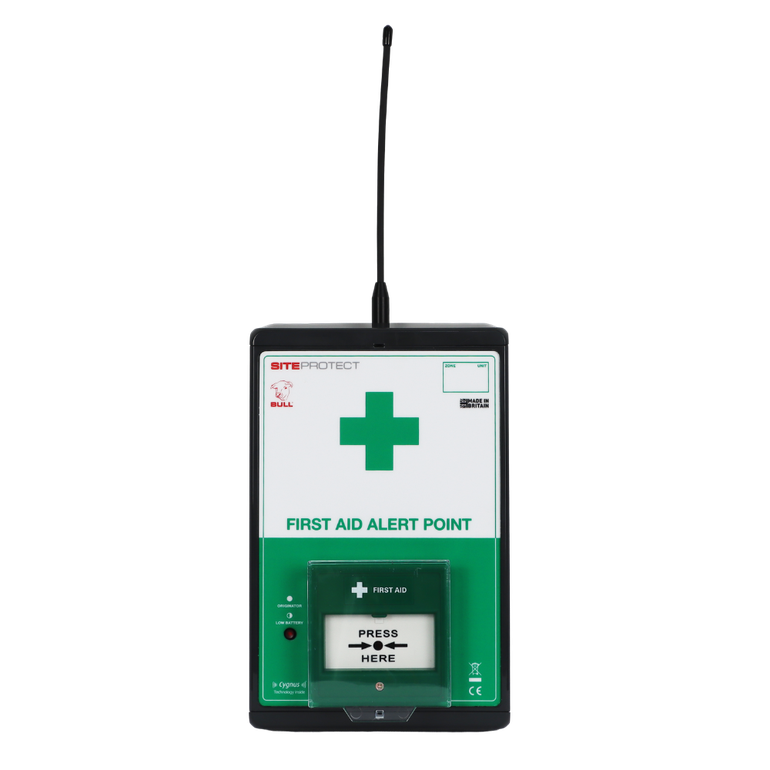

SITEPROTECT First Aid Alert Point

Once triggered, the IP65-rated SITEPROTECT first aid alert point alert beeps intermittently every eight seconds at 85 decibels. The control panel notifies the user of the exact location within a zone where the alarm has been triggered for quick identification of the search area.
The CYG5PIR SITEPROTECT First Aid Call Point Alarm c/w PIR intruder sensor

CYG4L

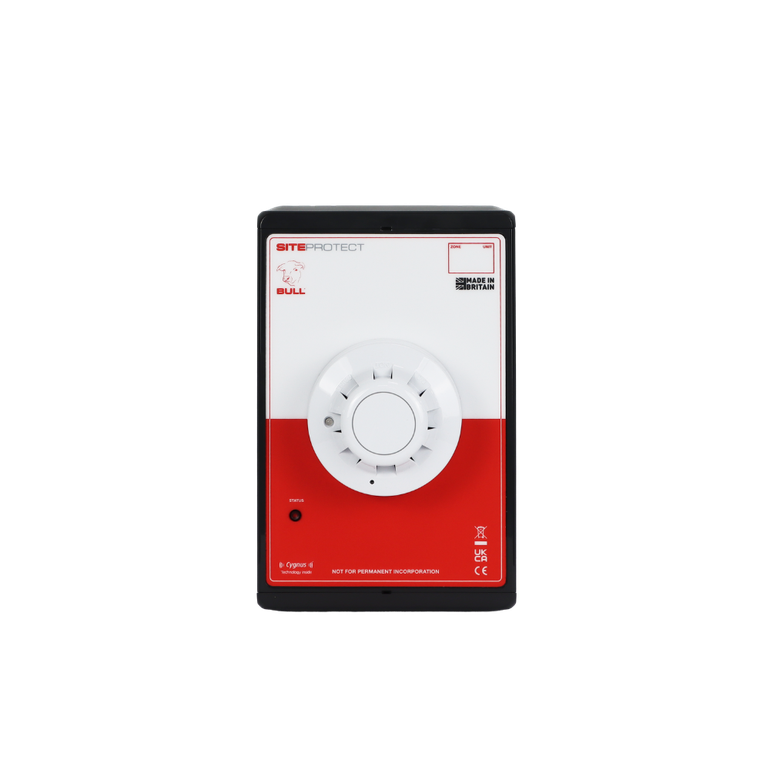

SITEPROTECT Smoke Detector

SITEPROTECT smoke detectors have optical smoke sensors that provide essential detection in and out of working hours and are particularly effective in site accommodation units. The detector activates the alarm and 85 decibel sounder when a preset threshold of smoke penetrates  the sensing chamber.
The CYG4LPIR SITEPROTECT Smoke Detector c/w PIR intruder sensor


CYGIOU

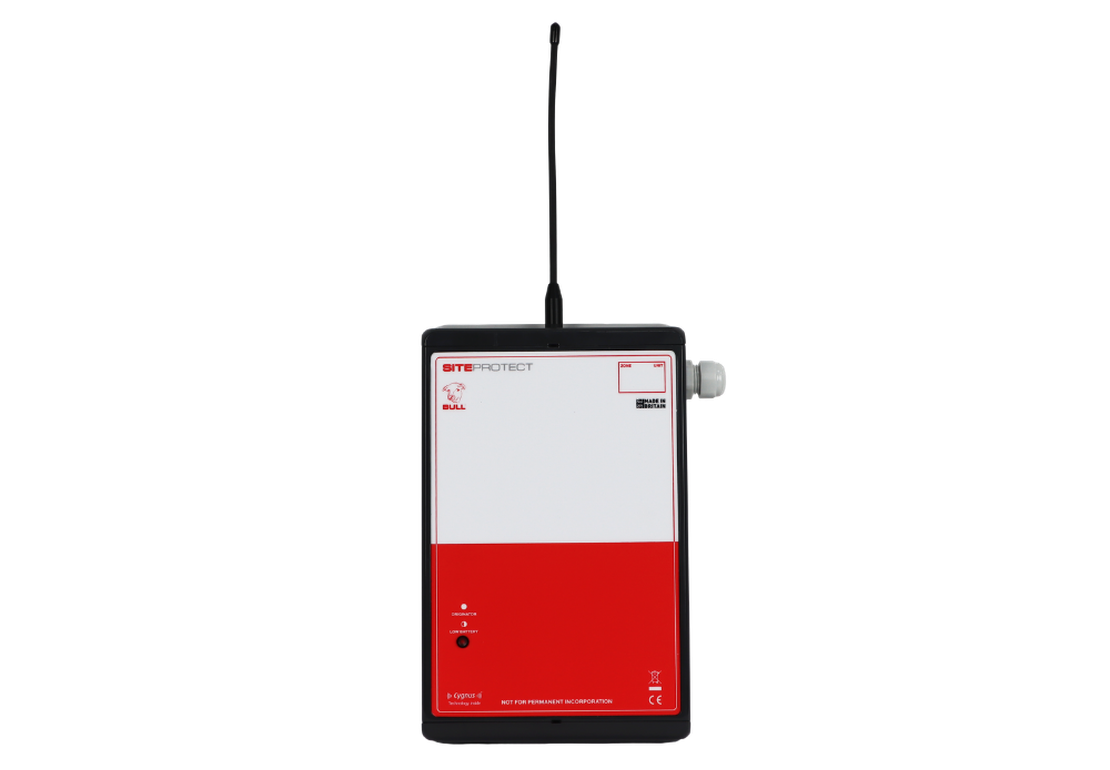

SITEPROTECT Input/Output Interface

The SITEPROTECT input/output unit interfaces with other fire systems, turnstile gate entry systems, and door release systems. In the case of an alarm activation, the interface triggers the door release and deactivates the turnstile for quick evacuation.

CYGLDAP01 | CYGLDA01

SITEPROTECT Lockdown Panel and Alarm

The SITEPROTECT Lockdown alarm system has been developed primarily for the education market to protect and warn of an intruder or other critical event. The system comprises of a control panel and remote devices that connect to each other through a wireless mesh network. Alarm devices can be located in each teaching area, so when the alarm is activated the staff and pupils will follow the lockdown procedure. An alarm device also has a call point which can be activated by the staff member in any area just like a fire call point system.
The lockdown alarm control panel is an optional element to notify a responsible person of an active alarm, to quickly identify the location of the activation and alert the authorities.
The system can be interfaced with the premises public address system using a SITEPROTECT Input/Output device.
Further features can be added such as GSM notifications using a SiteProtect Fire panel (CYG1) and Autodialler (AUTODI07-C) which can communicate an emergency to 50 users.
